Fender Eliminator Triumph Bonneville T120, Street Twin, Street Scrambler, Bonneville T100

I've added a whole new section to maundspeed.com .....F.E.K's for T120 /T100 Bonneville, Street Twin and Street Scrambler.
    Its not eye wash!  Its all in stock and ships day of order.
                      Available in 3 finishes:
1/ Satin brushed aluminum. (to match engine cases)
2/ Military Spec. abrasion/impact resistant crinkle black
3/ Black
 Click to Enlarge!



Selection of rear lamps supplied with LED or filament bulbs.
Brackets available with or without turn signals.
Turn signals are fitted with filament bulbs and compatible with plug/play connections
Q/C harness is optional. All kits are equipped with stainless mud pan.

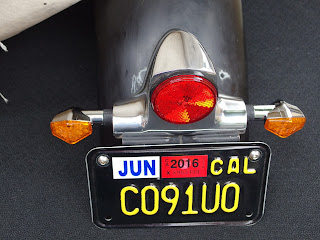

Here are some pictures of fitted kits. Thanks to the help of my pals at Douglas Motorcycles.        There is a good reason, they are oldest remaining British motorcycle dealership in the Los Angeles area.









ASSEMBLY


1/ Disconnect connector plug for fender harness.
2/ Remove 4 fender bolts with T30 driver.
3/ Eliminate fender.
4/ Install tail lamp and signals to bracket. If fitting turn signals use the 2 spacers provided.
5/ Position stainless mudguard and loosely attach nuts to forward 2 bolts.
6/ Align lamp bracket, with the mudguard nesting inside bracket. Using 2x oem bolts, stainless washers and nyloc nuts supplied. Loosely attach.
7/ Remove rear screw from seat latch with T30 driver. Replace with stainless screw supplied, aligning with hole in lamp bracket. Then secure using 6mm nut and washer supplied. Snug up. Do not over tighten.
8/ Fully tighten 4 previously installed fasteners.
9/ Connect wires as below for filament bulb Lucas 525. Long black wire with ring terminal, on Q/C harness, connects to either threaded stud on back of lamp chassis.
  Connecting LED lamps is explained below.

 Q/C Harness                 Connects to
ORANGE ...............................RED BRAKE LIGHT +
BROWN.................................BLACK TAIL LIGHT +
BLACK (W/RING TERMINAL) .....GROUND -
BLUE........................................R/H TURN +
RED.........................................L/H TURN +
BLACK DUAL CONNECTOR .........SIGNAL GROUND -

Turn Signals
BLACK.........POSITIVE +
BLACK/WHITE .......NEGATIVE -

LED Tail Lamp Connections

 LED Lucas 525
YELLOW.............GROUND -
BLACK................TAIL LIGHT +
RED......................BRAKE +

LED Smoke
BLACK.................GROUND -
RED.......................TAIL LIGHT +
GREEN..................BRAKE +

LED Miller Stop & Red Lens LED
BLACK..................GROUND -
BLUE.....................TAIL LIGHT +
RED.......................BRAKE +


 If hooking up to stock harness on Thruxton 1200, Bonneville or Street Twins this is what you need know.
BRAKE LIGHT + ............GREEN/PURPLE
TAIL LIGHT +.................YELLOW
R/H TURN +...................GREEN/WHITE
L/H TURN +...................GREEN/RED
GROUNDS-.....................BLACK



Monday, October 10, 2016

Triumph Thruxton 1200 1200R Fender Eliminator


                                 Tick-Tock, Thruxton FEK'S ready to rock!

Fender Eliminator for 2016 liquid cooled Thruxton.  Handsome design, crafted in aircraft grade aluminum casting. All stainless fasteners. Bolt on ready with quick connect harness.

                                           British made in the U.S.A

Available with OEM LED signal mounts







Available with turn signals or without.

ASSEMBLY

1/ Disconnect connector plug for fender harness.
2/ Remove 6 fender bolts, remembering the forward 2 are shorter, then remove fender.
3/ Remove seat latch by removing the screw. Once latch is free, the cable should be disconnected from mechanism.
4/ Replace forward 2 rubber grommets fitted on fender, to forward 2 holes in F.E.K mud pan.
5/ Keep all other rubber grommets and steel ferules in place. First, fit the forward 2 bolts retaining light bracket, using oem bolts. Stainless washers and nyloc nuts supplied.
6/ With all 4 holes in bracket aligned, tighten forward 2 bolts.
7/ Feed seat latch cable through transfer hole in base of pan. Reattach to latch and secure latch to frame
8/ Align mud pan and secure with remaining 4 bolts,washers and nuts. Remembering, the shorter 2 bolts fit in forward position.
 9/ Connect wires as below for filament bulb Lucas 525. Long black wire with ring terminal, on Q/C harness, connects to either threaded stud on back of lamp chassis.
  Connecting LED lamps is explained below.

 Q/C Harness                 Connects to
ORANGE ...............................RED BRAKE LIGHT +
BROWN.................................BLACK TAIL LIGHT +
BLACK (W/RING TERMINAL) .....GROUND -
BLUE........................................R/H TURN +
RED.........................................L/H TURN +
BLACK DUAL CONNECTOR .........SIGNAL GROUND -


LED Tail Lamp Connections

 LED Lucas 525
YELLOW.............GROUND -
BLACK................TAIL LIGHT +
RED......................BRAKE +

LED Smoke
BLACK.................GROUND -
RED.......................TAIL LIGHT +
GREEN..................BRAKE +

LED Miller Stop & Red Lens LED
BLACK..................GROUND -
BLUE.....................TAIL LIGHT +
RED.......................BRAKE +


 If hooking up to stock harness on Thruxton 1200, Bonneville or Street Twins this is what you need know.
BRAKE LIGHT + ............GREEN/PURPLE
TAIL LIGHT +.................YELLOW
R/H TURN +...................GREEN/WHITE
L/H TURN +...................GREEN/RED
GROUNDS-.....................BLACK




Tuesday, August 23, 2016

BMW R NINE T R 1200 GS THROTTLE POSITION SENSOR COVER

The object of making this cover was to keep as small and snug fitting as possible maintaining strength to protect throttle potentiometer and conceal connector harness. I wanted an alternative to the erector set (Mechano) look that requires a stack of spacers and overly long screws.
Fits 2006-2014 fuel injected boxer models. Not liquid cooled.
Gloss Black





Burnished finish

Bead blasted finish


Sunday, August 9, 2015

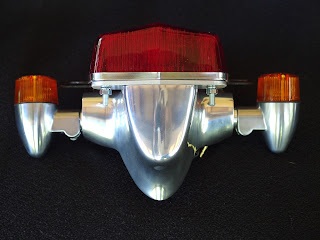

TRIUMPH BONNEVILLE THRUXTON SCRAMBLER PLUG & PLAY FENDER MOUNT LAMP KIT

So you now own a gorgeous Triumph with a hideous tail light. Don't want to be seen on Main Street with that on board. Whatcha gonna do?
                                What can you do?
Well there are some kits available constructed from a piece of bent up plate that show all the wires hanging out the back of the lamp.  But ....No flexibility in tail lamp choice....No style..... No upgrade.
If you have the tools, time and skill you can always make something fit and drill some holes in the fender, fiddle around with the wires, blow a fuse or three and waste a weekend.
OR............................................................
You may consider a new low profile plug 'N' play tail lamp kit.
  Direct bolt on. No drilling. No fiddlin'
   1/  Housing interchangeable with different lamps and signals.
   2/ Easy swap out any tail lamp.
   3/ No visible wires hanging out back of lamp. All connectors concealed/weather proofed in housing
   4/ Compatible to European turn signal spacing law.
   5/ Compatible to Outlaw standards.
   6/ Kit fits direct to existing tail light harness with O.E.M connectors
   7/ Fits Bonneville fender or Bobbed Thruxton/Scrambler fender
   8/ All rear lamps have running / brake light and license plate illumination
   9/ Only 4 basic tools needed for install : 4mm Allen wrench, 10mm wrench, crimp pliers,
       17mm or adjustable wrench

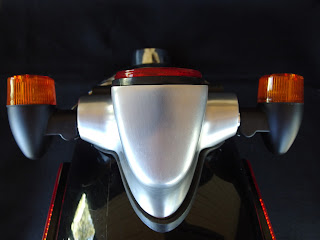

                              Housing is aluminum casting hand polished to perfection.

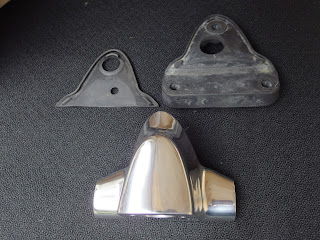

              Fitting o.e.m base gasket and utilizing rubber mounting eliminating vibration.

LED lamp filament bulb signals

L.E.D REAR LAMP AND SIGNALS

LUCAS 525 LAMP/OEM SIGNALS

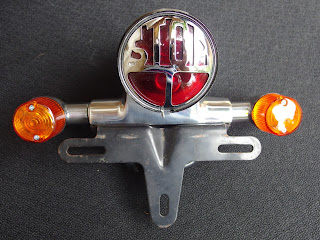

LUCAS 525 LAMP/BULLET SIGNALS




L.E.D CYCLOPS
MILLER TAIL LAMP
LED lamp filament bulb signals satin finish housing

PERFECT FOR EUROPEAN SIGNAL REQUIREMENTS
FITS THRUXTON/BONNEVILLE OR SCRAMBLER BASE GASKET

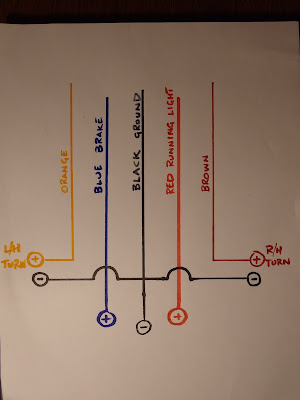

Fender Harness Diagram
When using kit with bullet signals and Lucas or Miller lamp. See below for the color hook up instruction. LED kits are supplied with  color hookup instructions as per lights in kit.

Harness wire color                Lamp wire Color
                         --Connects to--
Red  (running light)               Black
Blue  (brake)                         Red
Black  (ground)                     Black wire connected to housing
Orange                                  + Turn signal Left
Brown                                   + Turn signal Right
10mm wrench remove 3 nuts. Fender removal not necessary. Housing can be removed and connectors uncoupled

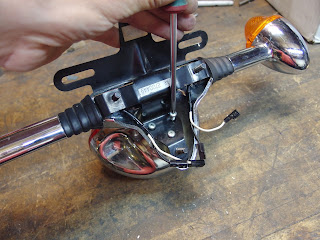

Remove 3 screws securing housing to bracket

Unbolt signals and replace. If using stock signals skip this step
Replace Maund housing and lamp on bracket using stainless screws and spacer."Tip". Use grease on screws to prevent spacer slipping. 2/ Plug in connectors as necessary making sure seating gasket is in place. Tighten 3x 10mm nuts to secure to fender. Done


1 3/4 INCHES LOWER

LED lamp filament bulb signals

L.E.D CYCLOPS
MILLER TAIL LAMP

Here is a little trick way to slick your license plate with a stock fender set up. Might not be the best                            idea if you live in a state that's main revenue is writing traffic tickets.
With hacksaw or cutoff disc slice 7/8" either side of bracket. Can be bent fairly easy or gently formed with a hammer. I found a 2 1/2" radius worked.

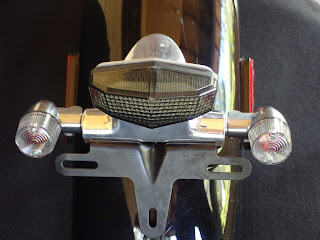

Desert racer style (Thruxton/Scrambler fender). Reduced to width of fender and easily read.

Clears long and short fenders
